JWT(2) Spring Boot + JWT 회원가입 및 로그인 예제

출처 : https://webfirewood.tistory.com/115

SPRING SECURITY + JWT 회원가입, 로그인 기능 구현



이 블로그 예제를 사용했다.

Project 생성

Spring Boot 버전은 2.7.0

아래와 같이 dependency 추가 해준다.

plugins {
    id 'org.springframework.boot' version '2.7.0'
    id 'io.spring.dependency-management' version '1.0.11.RELEASE'
    id 'java'
}

group = 'me.yeonsang'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = '1.8'

configurations {
    compileOnly {
        extendsFrom annotationProcessor
    }
}

repositories {
    mavenCentral()
}

dependencies {
    implementation 'org.springframework.boot:spring-boot-starter-data-jpa'
    implementation 'org.springframework.boot:spring-boot-starter-security'
    implementation 'org.springframework.boot:spring-boot-starter-web'
    implementation 'io.jsonwebtoken:jjwt:0.9.1'
    compileOnly 'org.projectlombok:lombok'
    runtimeOnly 'com.h2database:h2'
    annotationProcessor 'org.projectlombok:lombok'
    testImplementation 'org.springframework.boot:spring-boot-starter-test'
    testImplementation 'org.springframework.security:spring-security-test'
}

tasks.named('test') {
    useJUnitPlatform()
}

Class 생성

1.Domain, Repository

회원가입, 로그인 기능을 구현할 것이므로 User 클래스를 생성. JPA를 사용하므로 아래와 같이 작성

package me.chagari.jwttest.domain;

import lombok.*;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;
import java.util.stream.Collectors;

@Getter
@NoArgsConstructor
@AllArgsConstructor
@Builder
@Entity
@Table(name = "users")
public class User implements UserDetails {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(length = 100, nullable = false, unique = true)
    private String email;

    @Column(length = 300, nullable = false)
    private String password;
}

Table 명을 정해준 이유는 실행 시 Exception이 나면서 테이블 생성에서부터 막히기 때문이다. User라는 걸로 이미 해당 DB에 잡혀있을 수 있기 때문에 복수명으로 users라고 지정해줬다.


JPA를 사용하므로 Repository 도 생성해준다.

package me.chagari.jwttest.domain;

import org.springframework.data.jpa.repository.JpaRepository;

import java.util.Optional;

public interface UserRepository extends JpaRepository<User,Long> {

}

2.security setting

security를 사용하므로 설정을 해줘야한다.

spring boot 2.7.0 부터는 WebSecurityConfigureAdpater가 사용 중지가 되었다. 그래서 아래와 같이 설정한다.

package me.chagari.jwttest.config;

import lombok.RequiredArgsConstructor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.web.SecurityFilterChain;

@Configuration
@EnableWebSecurity
@RequiredArgsConstructor
public class WebSecurityConfig  {


    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http.httpBasic()
                .and()
                .authorizeRequests()
                .antMatchers("/admin/**").hasRole("ADMIN")
                .antMatchers("/user/**").hasRole("USER")
                .antMatchers("/**").permitAll();

        return http.build();
    }

}

3.jwt provider

토큰 발급과 검증을 하는 클래스 생성

package me.chagari.jwttest.config.security;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jws;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import lombok.RequiredArgsConstructor;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;
import javax.servlet.http.HttpServletRequest;
import java.util.Base64;
import java.util.Date;
import java.util.List;

@RequiredArgsConstructor
@Component
public class JwtTokenProvider {

    private String secretKey = "chargari";

    //유효 시간
    private long tokenValidTime = 30 * 60 * 1000L;

    private final UserDetailsService userDetailsService;

    //객체 초기화 .secretKey 를 Base64 로 인코딩
    @PostConstruct //우선 순위 1
    protected  void init() {
        secretKey = Base64.getEncoder().encodeToString(secretKey.getBytes());
    }

    // Create JWT Token
    public String createToken(String userPk, List<String> roles) {
        Claims claims = Jwts.claims().setSubject(userPk); // payload 에 저장되는 정보 단위
        claims.put("roles",roles); // key, value 쌍으로 저장된다.
        Date now = new Date();
        return Jwts.builder()
                .setClaims(claims)
                .setIssuedAt(now) // 발행 시간 정보
                .setExpiration(new Date(now.getTime() + tokenValidTime)) // 만료 시간 set
                .signWith(SignatureAlgorithm.HS256, secretKey) // 사용할 암호화 알고리즘 , signature에 들어갈 secret 값 세팅
                .compact();
    }

    // Jwt 토큰에서 인증 정보 조회
    public Authentication getAuthentication(String token) {
        UserDetails userDetails = userDetailsService.loadUserByUsername(this.getUserPk(token));
        return new UsernamePasswordAuthenticationToken(userDetails,"",userDetails.getAuthorities());
    }

    // 토큰에서 회원 정보 추출
    public String getUserPk(String token) {
        return Jwts.parser().setSigningKey(secretKey).parseClaimsJws(token).getBody().getSubject();
    }

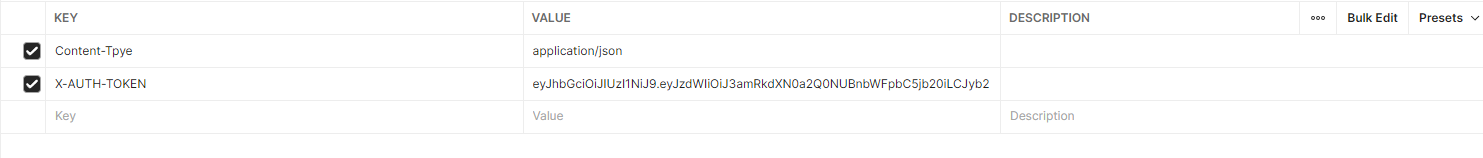

    // Request의 Header 에서 token 값을 가져온다. " X-AUTH-TOKEN" : "TOKEN 값"
    public String resolveToken(HttpServletRequest request){
        return request.getHeader("X-AUTH-TOKEN");
    }

    // 토큰의 유효성 + 만료일자 확인
    public boolean validateToken(String jwtToken){
        try{
            Jws<Claims> claims = Jwts.parser().setSigningKey(secretKey).parseClaimsJws(jwtToken);
            return !claims.getBody().getExpiration().before(new Date());
        } catch (Exception e){
            return false;
        }
    }
}

4.Filter 생성

토큰 발급과 검증을 하는 컴포넌트를 생성했다고 해도 filter에 추가하지 않으면 의미가 없기 때문에 CustomFilter 를 만들어준다.

package me.chagari.jwttest.config.security;

import lombok.RequiredArgsConstructor;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.web.filter.GenericFilterBean;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import java.io.IOException;

@RequiredArgsConstructor
public class JwtAuthenticationFilter extends GenericFilterBean {

    private final JwtTokenProvider jwtTokenProvider;

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        // header 에서 JWT 추출
        String token = jwtTokenProvider.resolveToken((HttpServletRequest) request);
        // validate Token
        if(token != null && jwtTokenProvider.validateToken(token)){
            Authentication authentication = jwtTokenProvider.getAuthentication(token);

            //security context 에 authentication 객체 저장
            SecurityContextHolder.getContext().setAuthentication(authentication);
        }
        chain.doFilter(request,response);
    }
}

5.Security Config

JWT Filter에서 유저 정보를 받고 UsernamePasswordAuthenticationFilter로 넘어가야 하므로 UsernamePasswordAuthenticationFilter 전에다가 등록. 아까 설정한 security config 클래스에 몇가지 더 추가 해준다.

 package me.chagari.jwttest.config;

import lombok.RequiredArgsConstructor;
import me.chagari.jwttest.config.security.JwtAuthenticationFilter;
import me.chagari.jwttest.config.security.JwtTokenProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.configuration.AuthenticationConfiguration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.factory.PasswordEncoderFactories;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
@RequiredArgsConstructor
public class WebSecurityConfig  {

    private final JwtTokenProvider jwtTokenProvider;

    //password encoder setting
    @Bean
    public PasswordEncoder passwordEncoder() {
        return PasswordEncoderFactories.createDelegatingPasswordEncoder();
    }

    //authenticationManger bean 등록
    @Bean
    public AuthenticationManager authenticationManagerBean(AuthenticationConfiguration authenticationConfiguration) throws Exception {
        return authenticationConfiguration.getAuthenticationManager();
    }

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http.httpBasic().disable() // rest api 만을 고려
                .csrf().disable() // csrf 보안 토큰 disable 처리
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS) //session 사용 x
                .and()
                .authorizeRequests()
                .antMatchers("/admin/**").hasRole("ADMIN")
                .antMatchers("/user/**").hasRole("USER")
                .antMatchers("/**").permitAll()
                .and()
                .addFilterBefore(new JwtAuthenticationFilter(jwtTokenProvider), UsernamePasswordAuthenticationFilter.class); // UsernamePasswordAuthenticationFilter 전에 넣는다.

        return http.build();
    }
}

6.CustomUserDetailsService 생성

JWT 에서 받은 유저 데이터를 활용해야하므로 UserDetailsService을 구현한 커스텀 구현체 생성

 package me.chagari.jwttest.config.security.user;

import lombok.RequiredArgsConstructor;
import me.chagari.jwttest.domain.UserRepository;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;


@RequiredArgsConstructor
@Service
public class CustomUserDetailService implements UserDetailsService {

    private final UserRepository userRepository;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        return (UserDetails) userRepository.findByEmail(username)
                .orElseThrow(()-> new UsernameNotFoundException("User Not Found!"));
    }
}

findByEmail을 사용중이다. Repository 인터페이스에서 findByEmail 메서드를 입력해주자.

 package me.chagari.jwttest.domain;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.security.core.userdetails.UserDetails;

import java.util.Optional;

public interface UserRepository extends JpaRepository<User,Long> {

    Optional<User> findByEmail(String email);

}

7.User Class 수정

SpringSecurity는 UserDetails 객체를 통해 권한 정보를 관리하기 때문에 User 클래스에 UserDetails 를 구현하고 추가 정보를 재정의 해야 한다.

 package me.chagari.jwttest.domain;

import lombok.*;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;
import java.util.stream.Collectors;

@Getter
@NoArgsConstructor
@AllArgsConstructor
@Builder
@Entity
@Table(name = "users")
public class User implements UserDetails {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(length = 100, nullable = false, unique = true)
    private String email;

    @Column(length = 300, nullable = false)
    private String password;

    @ElementCollection(fetch = FetchType.EAGER)
    @Builder.Default
    private List<String> roles = new ArrayList<>();

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        return this.roles.stream()
                .map(SimpleGrantedAuthority::new)
                .collect(Collectors.toList());
    }

    @Override
    public String getUsername() {
        return email;
    }

    @Override
    public boolean isAccountNonExpired() {
        return true;
    }

    @Override
    public boolean isAccountNonLocked() {
        return true;
    }

    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }

    @Override
    public boolean isEnabled() {
        return true;
    }
}

8.Controller 생성

직접 회원가입 로그인을 해야하므로 RestController를 생성해준다.

 package me.chagari.jwttest.controller;

import lombok.RequiredArgsConstructor;
import me.chagari.jwttest.config.security.JwtTokenProvider;
import me.chagari.jwttest.domain.User;
import me.chagari.jwttest.domain.UserRepository;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

import java.util.Collections;
import java.util.Map;

@RequiredArgsConstructor
@RestController
public class UserController {

    private final PasswordEncoder passwordEncoder;
    private final JwtTokenProvider jwtTokenProvider;
    private final UserRepository userRepository;

    @PostMapping("/join")
    public Long join(@RequestBody Map<String,String> user) {
        return userRepository.save(User.builder()
                .email(user.get("email"))
                .password(passwordEncoder.encode(user.get("password")))
                .roles(Collections.singletonList("ROLE_USER"))
                .build()).getId();

    }

    @PostMapping("/login")
    public String login(@RequestBody Map<String,String>user){
        User member = userRepository.findByEmail(user.get("email"))
                .orElseThrow(()-> new IllegalArgumentException("가입되지 않은 Email"));
        if(!passwordEncoder.matches(user.get("password"), member.getPassword())) {
            throw new IllegalArgumentException("잘못된 비밀번호");
        }
        return jwtTokenProvider.createToken(member.getUsername(), member.getRoles());
    }
}

TEST

PostMan 을 사용해서 test를 했다.

회원가입

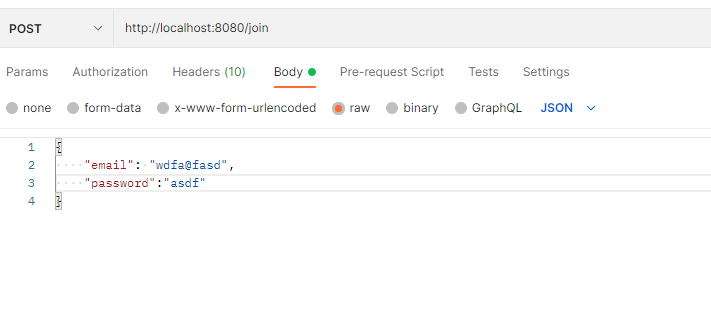

회원가입 시에는 Body에 JSON 타입으로 /join으로 넘기면 된다.

로그인
/join 대신 /login을 넣으면 된다.

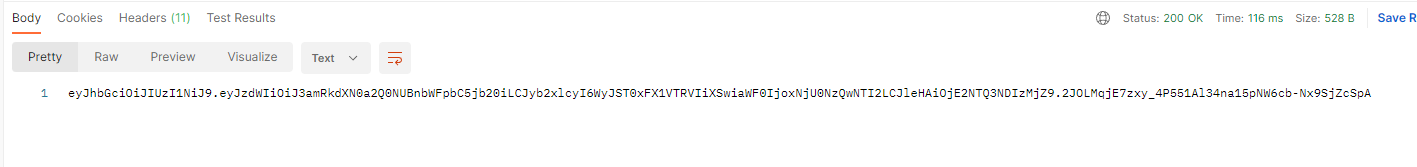

로그인에 성공하게 되면 아래와 같이 토큰값이 반환된다.

이제 이 토큰 값을 가지고 권한이 필요한 경로로 접근할때 header에 X-AUTH-TOKEN에다가 로그인할 때 받은 토큰을 넣어주면 된다.

JWT로 회원가입, 로그인만 테스트 해보는 거여서 빠진 부분이 좀 있다.
